about reacto

REACTO is a revolutionary Technovative product especially Designed, Engineered and Customized to treat the Sewage to suit the varying Indian conditions and End Usage/Applications ,which is based on internationally acclaimed ,proven, and superior biological process, complies with various stringent regulatory norms stipulated by Apex Government agencies.
REACTO is backed by AWATECHs expertise in Waste Water Treatment through its own R & D and collaboration with renowned Global Leaders.


Reacto Applications

↠ Housing Societies /Apartments
↠ Educational Institutions
↠ Commercial Buildings viz: Offices, Multiplexes, Hotels ,Resorts ,Hospitals etc
↠ Small villages
↠ Community Parks
↠ Play Grounds
↠ Airports,Railway Stations, Bus Depots
↠ Army Cantonment


Reacto Advantages

↠ Less Power Consumption. Low Capex and Opex. Expandable.
↠ No or Minimum civil construction. Quick Turn Around Time.
↠ Ideal for Reuse applications like Gardening, Washing,Irrigation, Flushing etc.
↠ Simultaneous Nitrate and Phosphorus removal along with Highest BNR Removal.
↠ Low O & M Cost as there are less number of working equipment
↠ Minimum Chemical Dosing Required.
↠ No additional Settling Tank or Secondary Clarifier is required.


Reacto Features

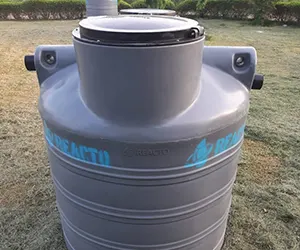

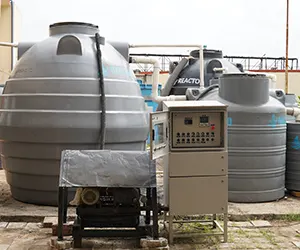

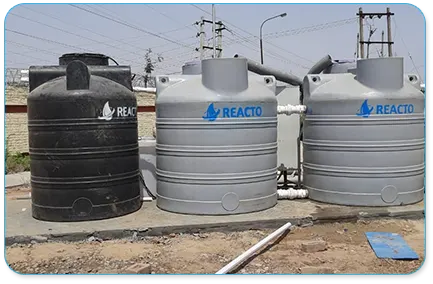

↠ Available as Packaged and Modular Systems
↠ Underground instillation as well as retrofication from existing tank can be possible
↠ Can be Configured and Customized with advance filtration technologies such as UF, RO, Etc for specific end usage application
↠ Dual disinfection options viz UV or Hypochloride
↠ AMC along with O& M and ASAP Services (AWATECH Assured Service Plan)
↠ Plant can be integrated with optional Renewable Energy power sources thus reducing the power cost
↠ Sludge treatment by advance thermophilic sludge treatment process thus giving the compost grade sludge
↠ 3D modeling based detail engineering methodology to ensure optimum quality and space saving

PROCESS

REACTO is Designed, Engineered and Customized based on redefined and Technovative Continuous Influent /Time Based Activated Sludge Process wherein all biological treatment phases occur in a single Reactor either in a single cycle or multiple cycles achieving highest possible efficiency thru process optimization, intelligent controls and monitoring at every stage/cycle thus giving the out- put as per stringent regulatory parameters.

Characteristics


Typical Influent and Effluent Characteristics of Reacto.

Availiability


Typical size and power consumption of REACTO

NOTE: Power Consumption & LPCD figures are for the typical operational characteristics of influent and effluent. It may vary as per customization required by the clients.

  • Capacity

    5 kld

    10 kld

    25 kld

    50 kld

    100 kld

    125 kld

    150 kld

  • PE EQ@108LPCD

    46

    93

    231

    463

    926

    1157

    1389

  • Power Consumption

    7.64(kwh/day)

    7.64(kwh/day)

    12.02(kwh/day)

    31.7(kwh/day)

    40.66(kwh/day)

    50.53(kwh/day)

    56.23(kwh/day)
